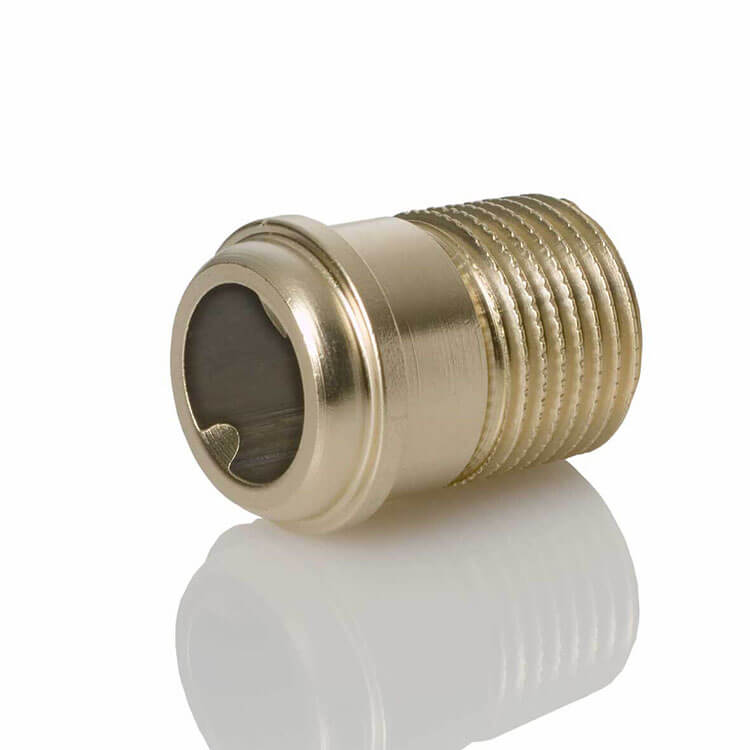

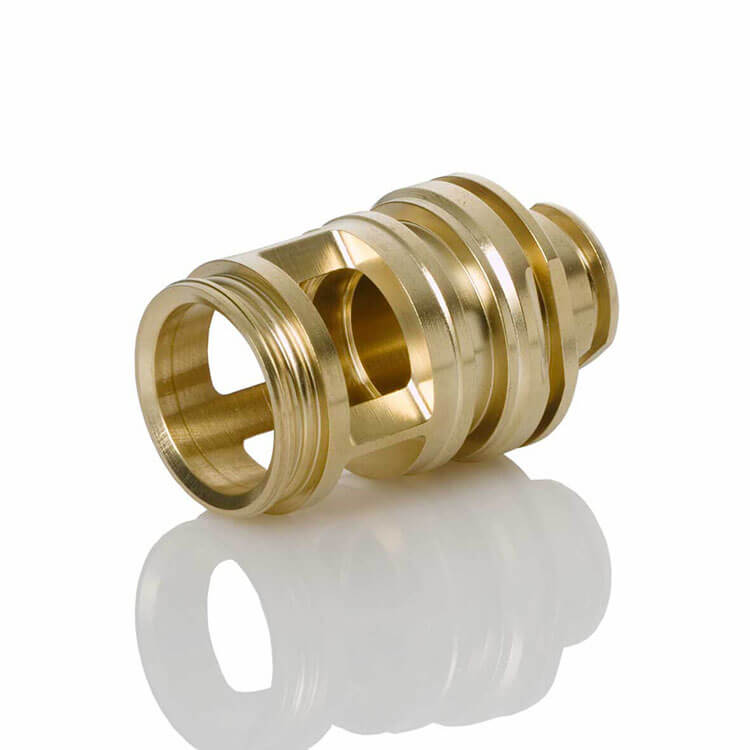

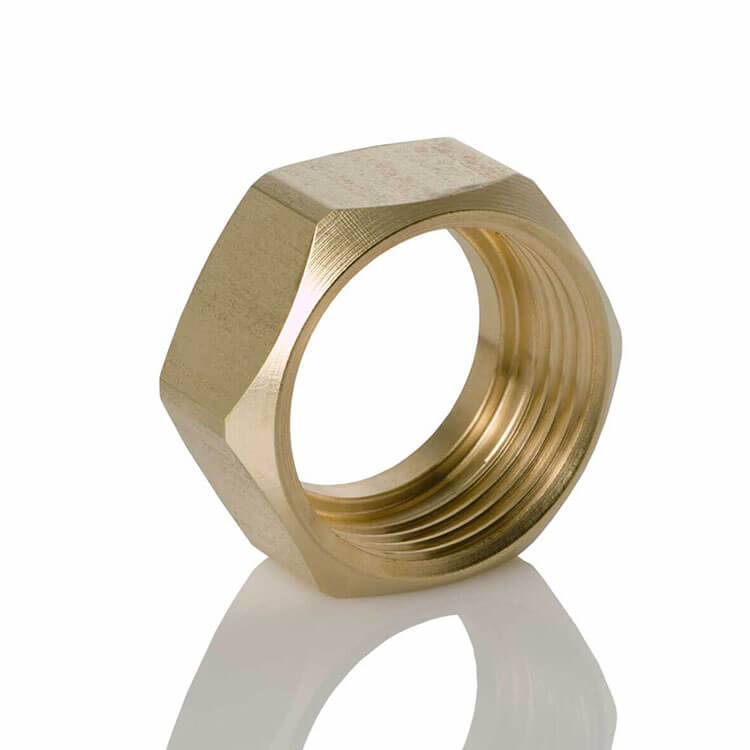

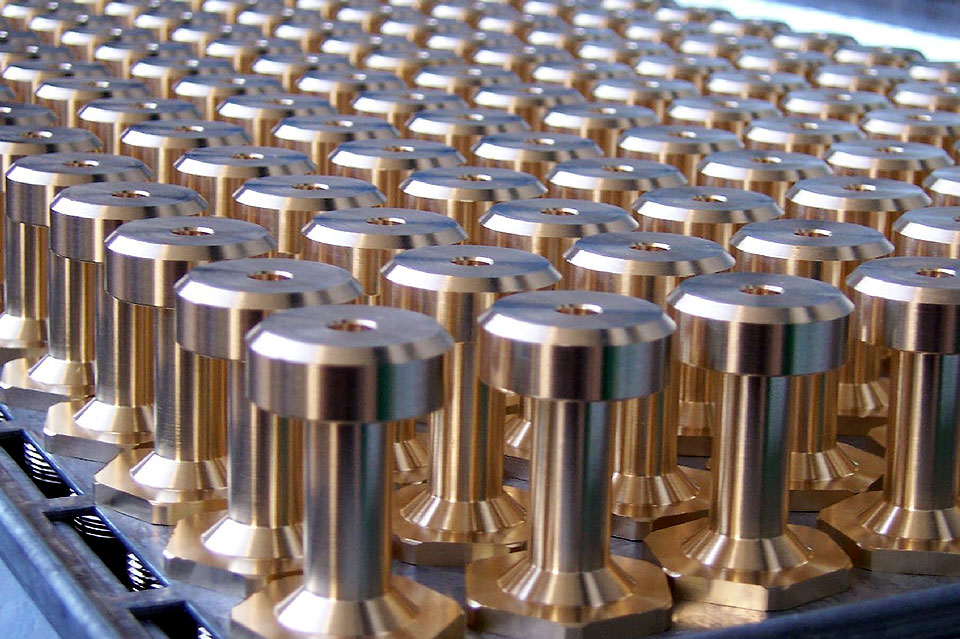

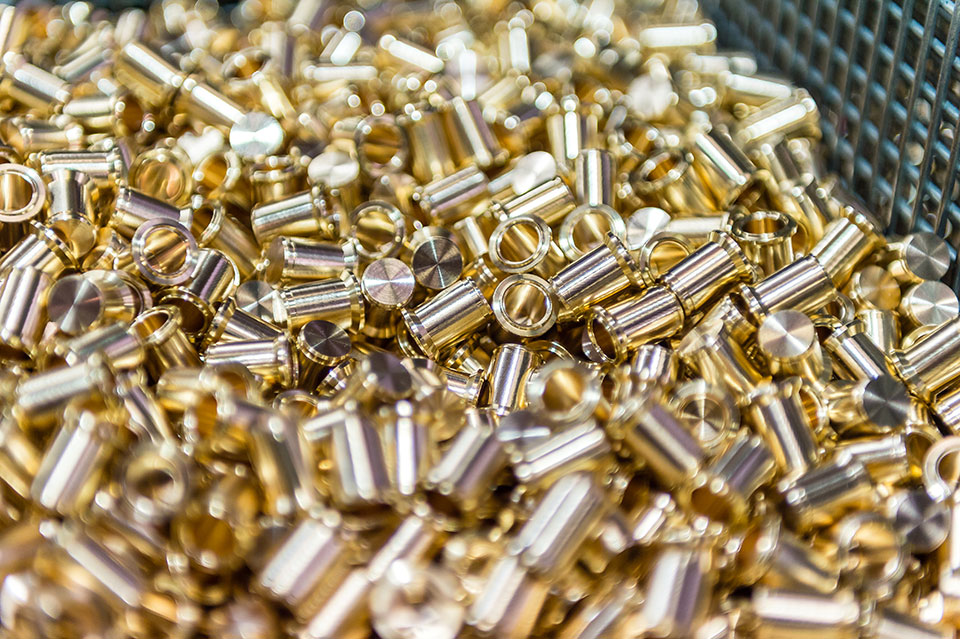

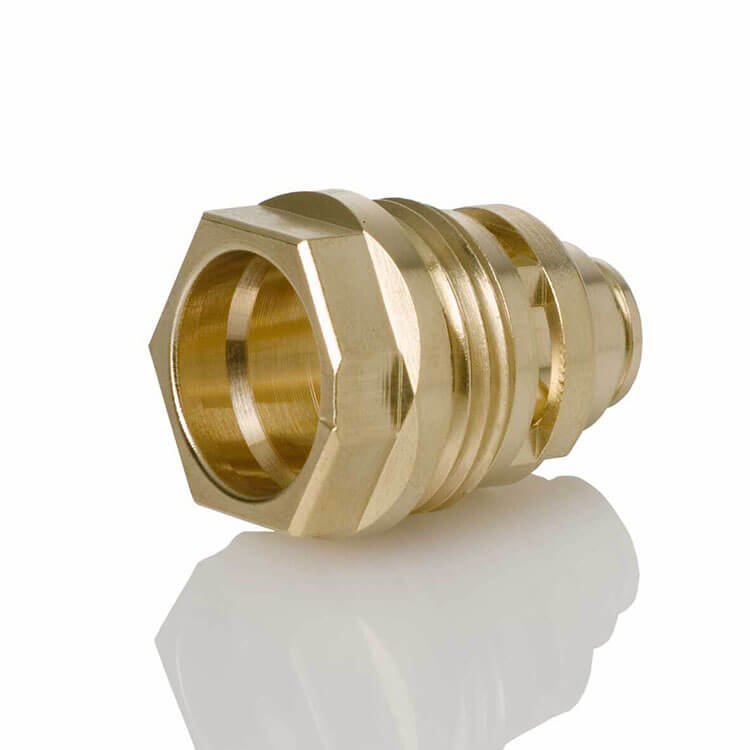

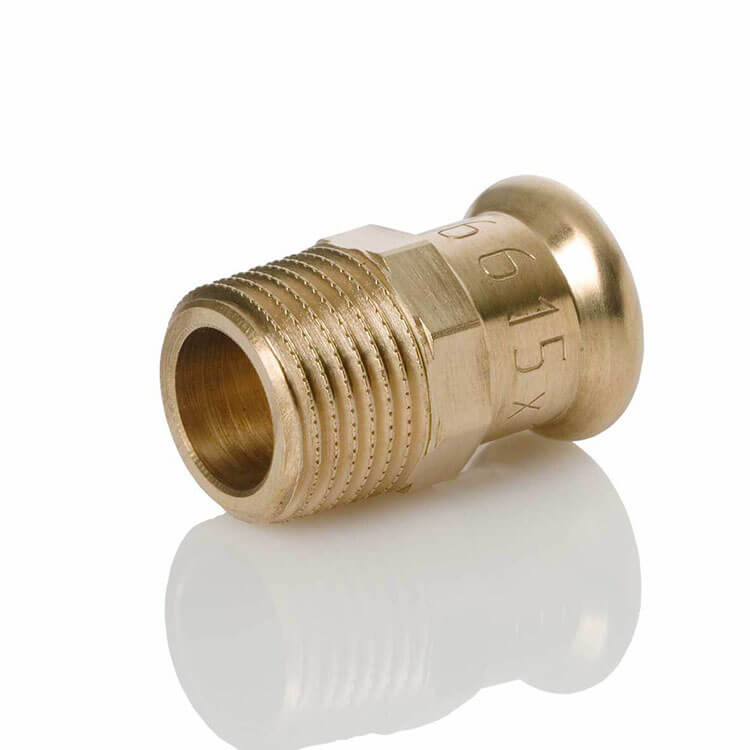

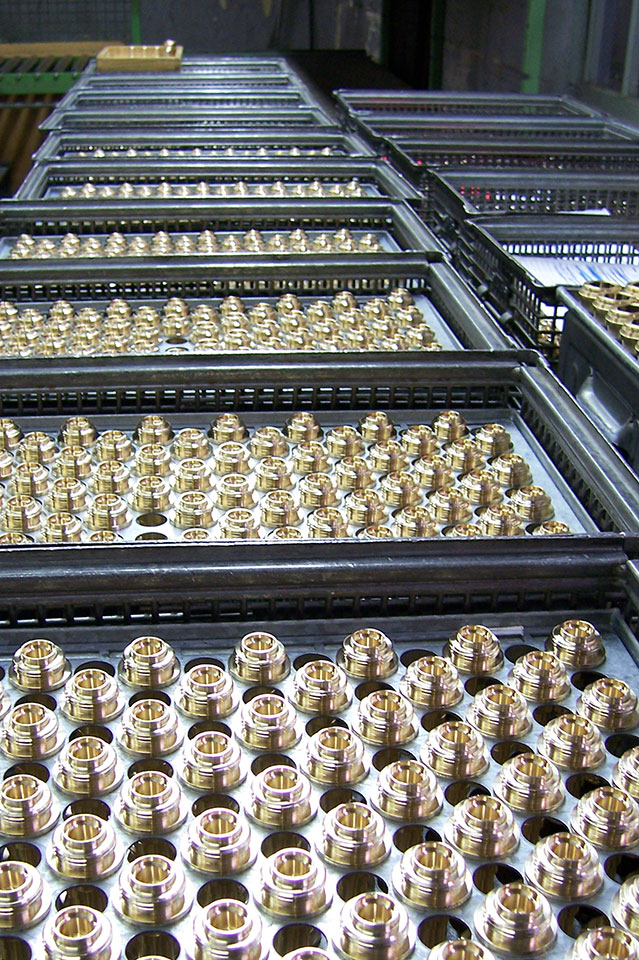

Here are some pictures for the production of lathe-turned parts - please click on the picture.
Precise lathe-turned parts according to drawing

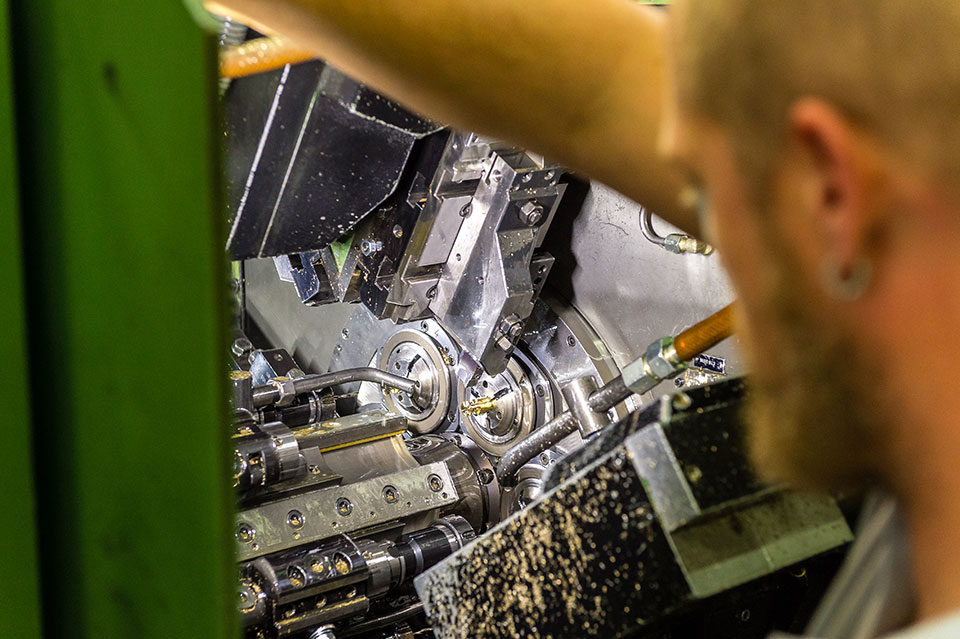

We manufacture precision lathe-turned parts for our national and international customers on a total of 30 CNC Multi- and Single spindle automatic lathes as well as turn-controlled lathes. Our decades of industry knowledge is used for your advantage for the correct procedure in each case.
CNC Multi spindle lathes up to Ø 54 mm, CNC Single spindle up to Ø 90 mm, CNC sliding headstock lathes up to Ø 20 mm as well as turn-controlled single and multi-spindle lathes up to Ø 42 mm enable to machining simple and demanding lathe-turned parts according to your requirements made in Germany.
Our capacities allow the production of small and large series.
Materials such as brass, the lead-free alloy CUPHIN, the dezincification-resistant DEZIRON, but especially gunmetal and gunmetal plus, require a lot of experience for the precise machining of lathe-turned parts.
In addition, at Arnsberger Metallwerke, we manufacture lathe-turned parts from aluminium, stainless steel, steel and plastics.
Our finishing processes are: electroplating, nickel-plating, galvanizing and printing, simple system assembly and optoelectronic sorting.

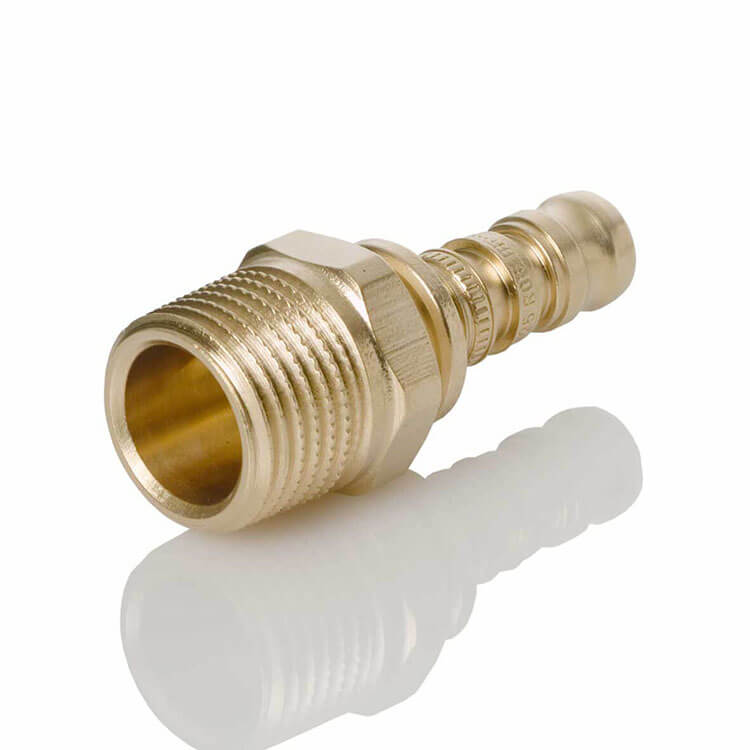

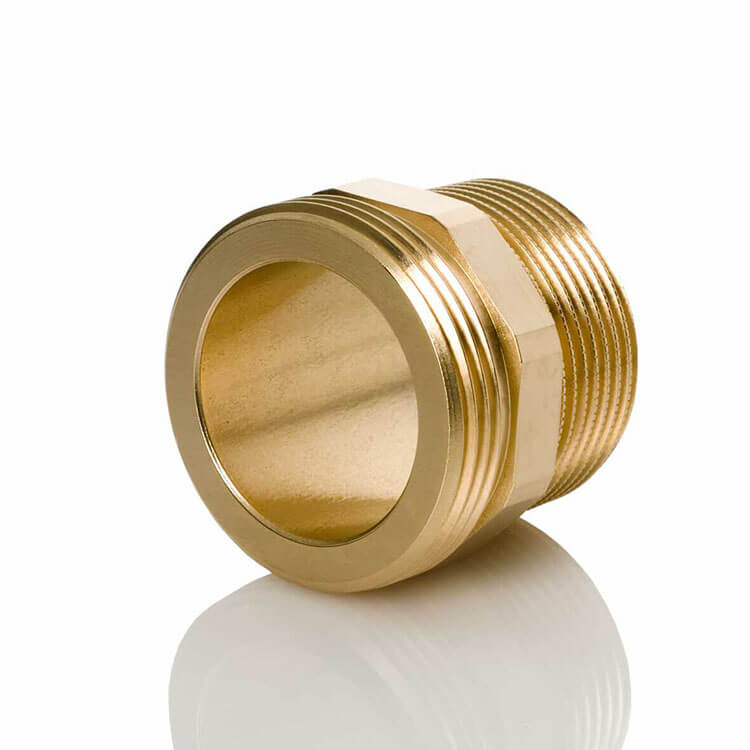

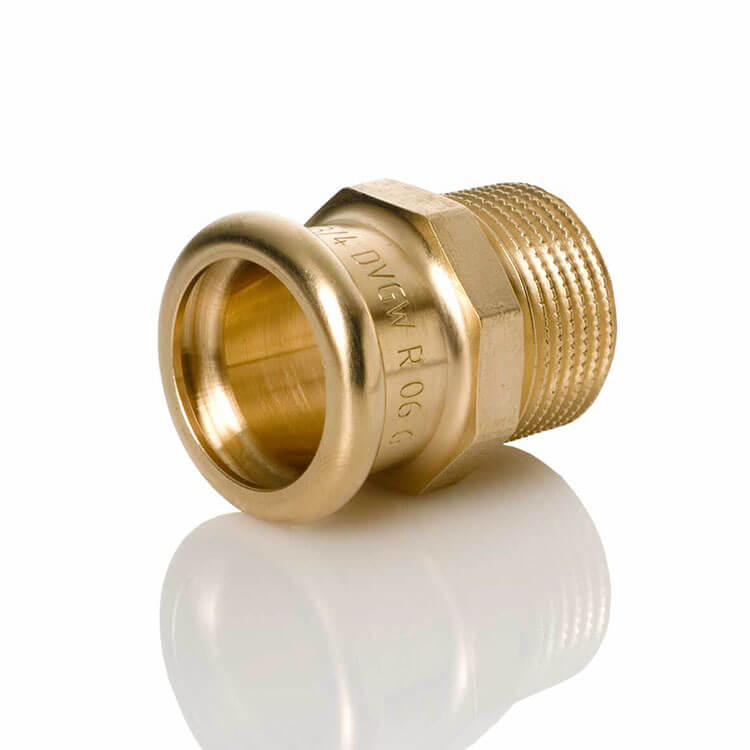

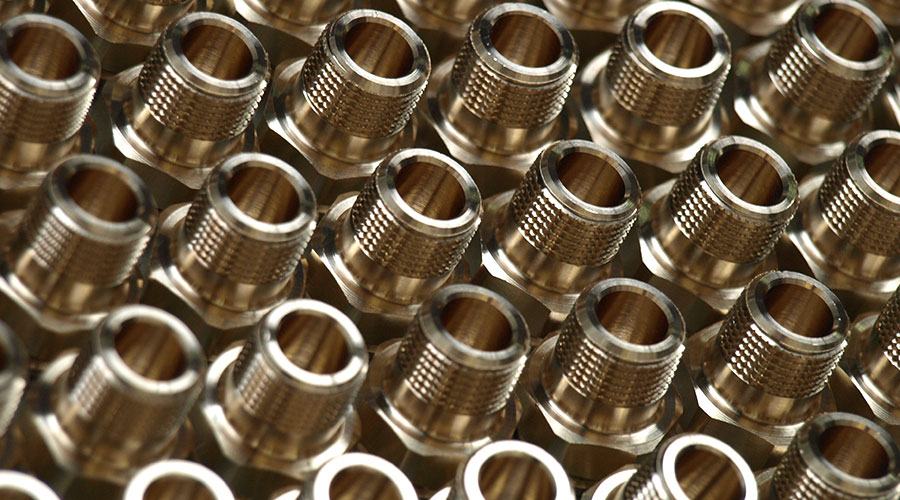

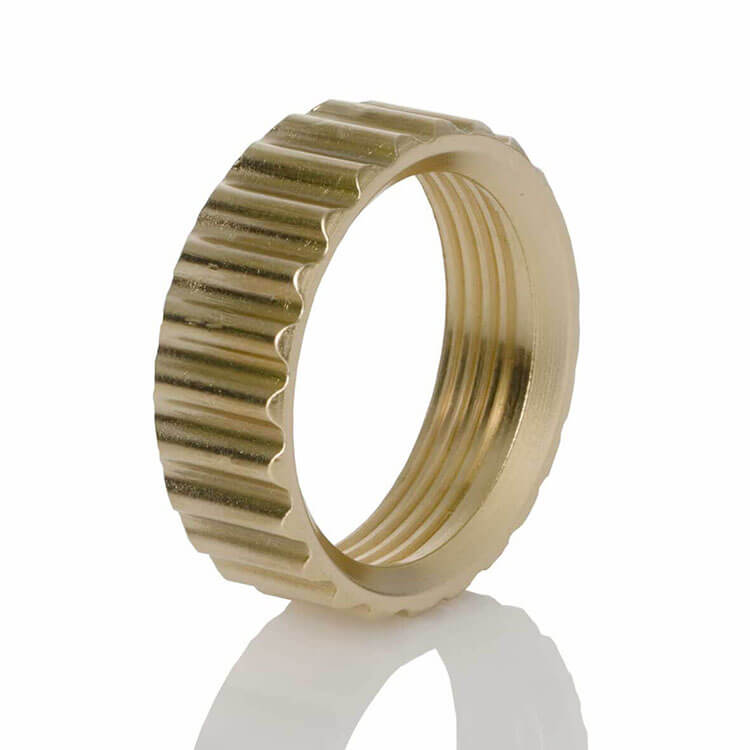

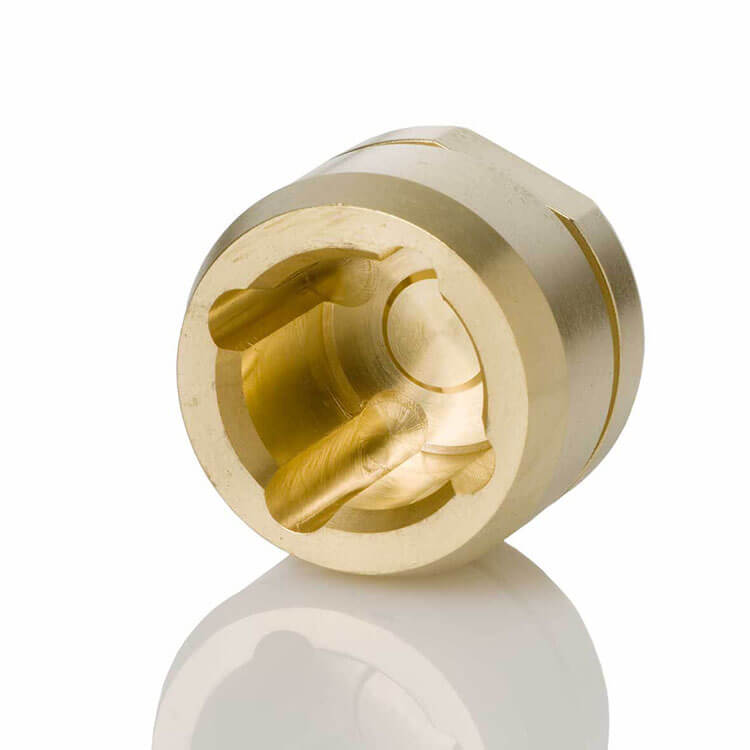

Brass turned parts are manufactured from the proven materials CW614N (CuZn39Pb3) and CW617N (CuZn40Pb2), but also from CW602N (CuZn36Pb2AS), CW608 (CuZn38Pb2), CW612N (CuZn39Pb2). We process low-lead and lead-free alloys such as CW724R (CuZn21Si3P, Cuphin, Ecobrass) and CW626N (CuZn22Pb1,5AIAS, Deziron) as well as dezincification-resistant brass such as CW511L (CuZn38).
Of course you can get different degrees of hardness as well as heat-treated parts if required.
Gunmetal turned parts are manufactured from the materials CC493K (G-CuSn7ZnPb) and the material CC499K (CuSn5ZnPbP-C-GC) for unrestricted use in accordance with DIN 50930-6 / DIN EN 1982 in drinking water installations.
Steel turned parts in the alloys: 1.0718 (11SMnPb30 + C), 1.0715 (11SMn30 + C), etc.
Aluminium Turned parts in the alloys: 3.3206 (AlMgSi0.5), 3.2315 (AlMgSi1), 3.1645 (AlCuMgPb) and 3.0615 (AlMgSiPb).
Stainless steel turned parts in the alloy: 1.4305 (X8CrNiS 18-9).
Turned parts made of plastics: PE, PC / PMMA, POM, PA 6, PA 6.6, PTFE and PVC.
Other materials on request
